The Wiring Loom
According to howacarworks.com "the electrical wiring in a car is a system of colour-coded wires called the loom. Where several wires run side by side they are bound together with insulating tape or plastic sleeving". It can also be called a wiring Harness. In the GT6 it is divided into two sections, one serving the front of the car, and one the rear. These are linked under the dash by a connector like this:
The split is roughly as below:
| CIRCUIT | LOOM |
| Front Parking lamp | Front |
| Hazard warning | Front |
| Headlamp flasher | Front |
| Heater | Front |
| Horn | Front |
| Instrument illumination | Front |
| Temperature indication | Front |
| Turn signal flasher lamp (Front) | Front |
| Windscreen wiper | Front |
| Heated rear window | Rear |
| Fuel indication | Rear |
| Plate illumination lamp | Rear |
| Reverse lamp | Rear |
| Roof lamp | Rear |
| Stop lamp | Rear |
| Tail lamp | Rear |
| Turn signal flasher lamp (Rear) | Rear |
This loom is protected by only three 35amp fuses as follows:
| FUSE | RATING | CABLE IN | CIRCUIT | |
| Top | 35amp | White (W) wire from ignition/starter switch | Heated rear window | |
| Turn signal flasher lamp | ||||
| Heater | ||||
| Fuel indication | ||||
| Temperature indication | ||||
| Stop lamp | ||||
| Windscreen wiper | ||||
| Reverse lamp | ||||
| Centre | 35amp | Red/Green (RG) cable from master light switch | Tail lamp | |
| Plate illumination lamp | ||||
| Front Parking lamp | ||||
| Instrument illumination | ||||
| Bottom | 35amp | Brown (N) cable from battery (via solenoid) | Horn | |
| Hazard warning | ||||
| Headlamp flasher | ||||
| Roof lamp | ||||

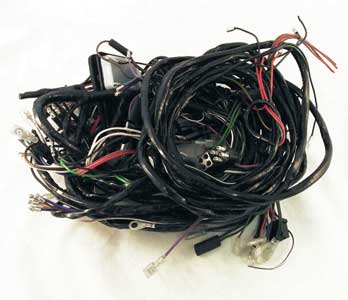

The front loom looked like this, when removed (below left) and a new one as supplied by Autosparks is below right.
